Classic Car Electrical
Beyond the Lucas Jokes

Wiring Looms

A complete rewire is one of the most transformative things you can do for a classic car's reliability. Decades of heat cycles, moisture, and repairs leave original looms with cracked insulation, incorrect joints, and undocumented modifications. A new loom fitted to factory colour coding and connector specifications means knowing exactly what goes where.

British Wiring and Auto Sparks (UK) are the leading specialist loom manufacturers for British classics. They produce vehicle-specific looms to original colour codes with period-correct connectors. The cost is significant — typically £300–600 for a complete loom — but the reliability benefit over a 60-year-old original is substantial.

For a partial rewire or repair, use correct-specification automotive cable rated for the temperature and current application. Do not use domestic flex or telephone cable in any automotive application. Engine bay wiring requires cables rated to at least 105°C.

Charging Systems — Dynamo & Alternator

Original dynamos produce adequate charge for the era's electrical load — headlamps, ignition, and a radio if fitted. They do not produce charge at idle, which means long-duration traffic jams gradually discharge the battery. This was acceptable in 1965; it is less acceptable in modern traffic.

A rebuilt dynamo from a specialist is perfectly serviceable for light use. For cars that will be driven regularly, a modern alternator conversion offers full charge at idle, significantly higher output, and internal regulation. Conversion kits for most British classics retain the original-style mounting and belt drive.

The voltage regulator (cut-out/control box) on a dynamo-equipped car is a regular maintenance item. They drift out of calibration and either undercharge (flat battery) or overcharge (boiled battery and failed components). Rebuilds are available; electronic replacement regulators are more reliable and stable.

Ignition — Distributor & Coil

Lucas distributors — fitted to virtually every British classic — are capable of excellent performance when maintained correctly. The points and condenser require replacement at regular intervals (typically every 15,000–20,000 miles); the advance mechanism requires periodic inspection and lubrication.

Electronic ignition conversion (replacing the points and condenser with a Hall-effect or optical trigger) eliminates the maintenance requirement and gives more consistent advance. Kits from Pertronix (US) and Lumenition (UK) fit inside the original distributor cap and are invisible externally. For concours cars, a rebuilt original points setup is more correct; for drivers, electronic ignition is a reliable improvement.

Ignition coils should be matched to the ballasted or unballasted ignition system. Fitting a 3-ohm standard coil to a ballasted system (which provides reduced voltage to the coil in run) will cause premature failure. Verify the system type before replacing.

Switches & Relays

Original Lucas rocker switches and column switches are now in reproduction from multiple suppliers. Quality varies considerably. The best reproductions are almost indistinguishable from originals in feel; the worst have a cheap, light action and short contact life.

Adding relays to high-current circuits — headlamps, horns, electric fans — is a practical upgrade that reduces the load on often-fragile original switches and wiring. Many classic electrical problems (dim headlights, blown fuses, burning switch contacts) are caused by too much current running through inadequately rated original wiring. A relay allows a small signal current through the switch and a properly fused high-current circuit direct from the battery.

Gauges & Instruments

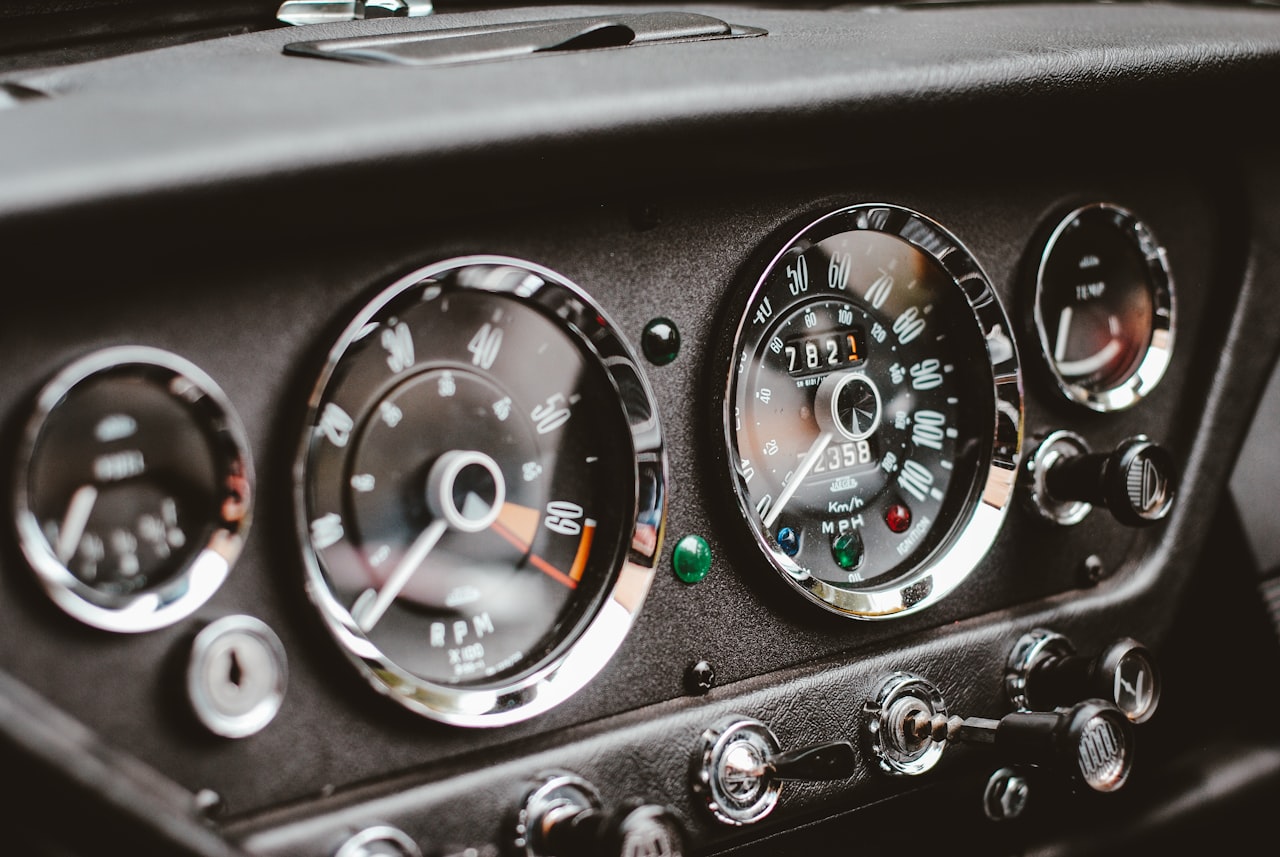

Classic car gauges — Smiths, Jaeger, VDO — are mechanical masterpieces that remain largely accurate for decades when not tampered with. Failure modes are typically either the capillary tube on temperature and oil pressure gauges (fracture causes immediate reading loss) or the instrument illumination bulbs.

Gauge restoration is a specialist trade. Nisonger Instruments (US) and Speedy Cables (UK) both offer instrument rebuilding and recalibration. Replacement used instruments from the same model are often more cost-effective than reproduction for common British gauges.

Speedo and rev counter cables are a common cause of instrument failure — an oily or kinked cable causes erratic readings or the drive gear to strip. These are wear items; replacement cables are available cheaply from Moss Motors and Rimmer Bros for most applications.

Common Pitfalls

• Bad earths (grounds): The majority of classic car electrical faults are bad earth connections. Corroded body-to-engine block earths, battery terminal earths, and instrument panel earths cause everything from dim lights to inoperative gauges. Clean and tighten all earth connections before purchasing new components.
• Incorrect fusing: Over-fusing (fitting a higher-rated fuse than specified) allows wiring to overheat before the fuse blows. This is how wiring fires start. Fit the correct rating.
• Mixing positive and negative earth: Some owners mix components from positive-earth and negative-earth cars without understanding the implications. Confirm the system polarity before fitting any electrical component.
• Ignoring connector corrosion: Bullet and spade connectors corrode internally. External appearance can be fine while the contact resistance is high enough to cause intermittent faults. Clean or replace connectors as part of any fault diagnosis.
• Chasing faults with new parts: Most classic electrical faults are not component failure — they are connection failure (bad earth, corroded connector, loose terminal). Replacing parts without diagnosis wastes money and leaves the root cause unfixed.
